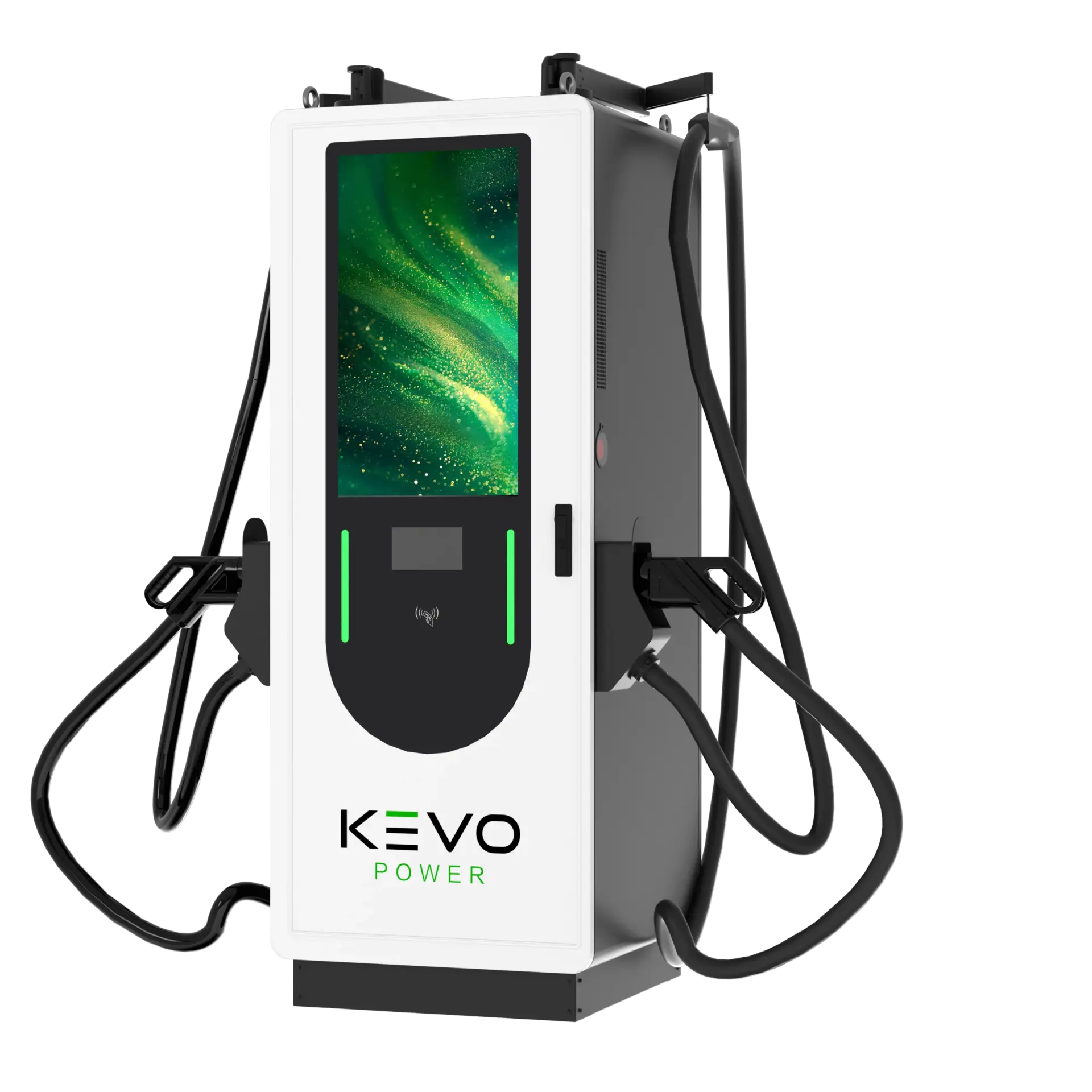

Modular DC fast charging, engineered for operational flexibility. Our scalable architecture minimizes maintenance downtime, maximizes site uptime, and empowers CPOs to future-proof their network with unmatched efficiency.
Contact Us
A
B
C
D
E
Avoid "zombie chargers" and keep your station always online.
Operating Status Overview
Standby mode with system ready.
Charging in progress, power delivered.
Fault detected, check system.

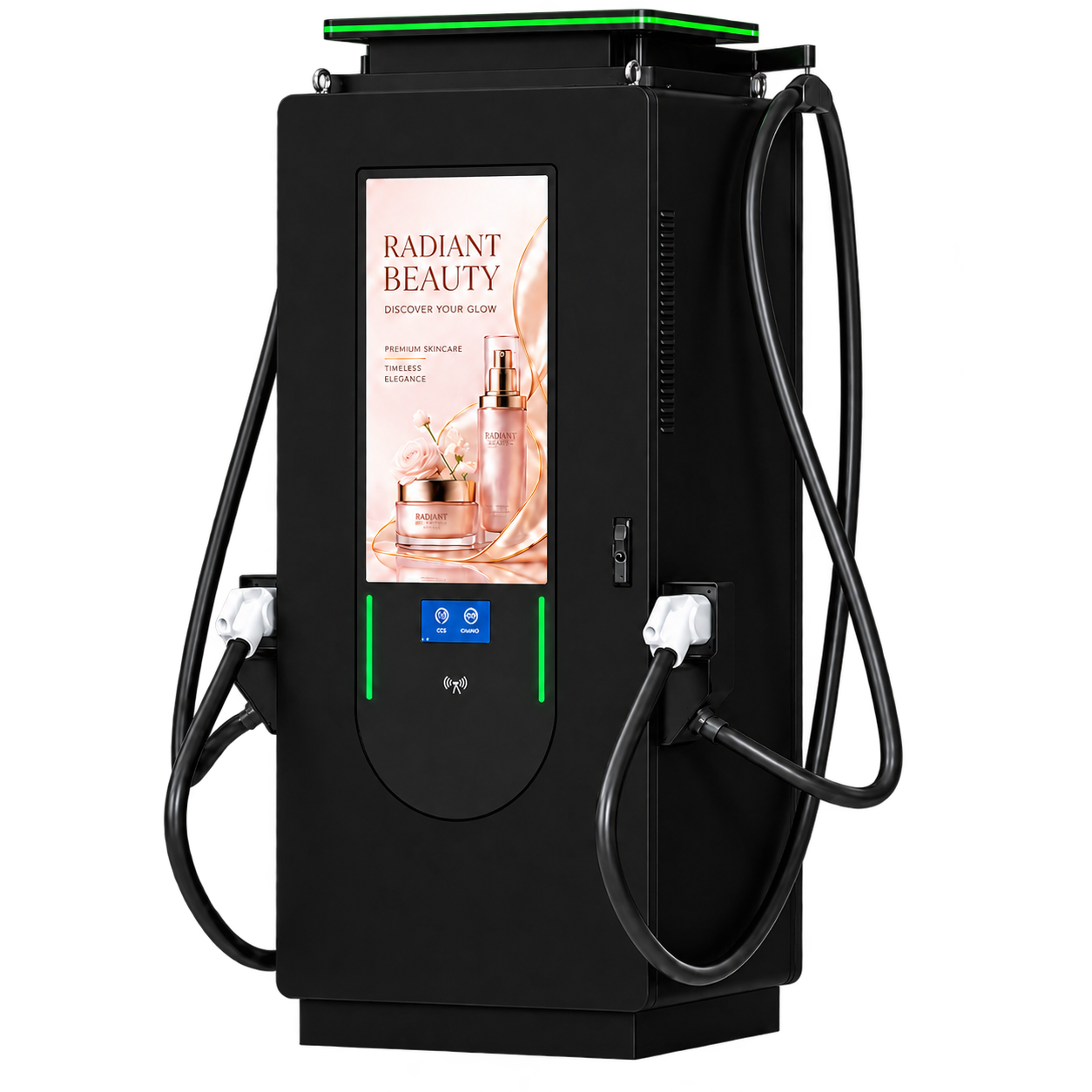

| Model | KP-D320D-X | KP-D360D-X | KP-D400D-X |
|---|---|---|---|
| Rated Input Voltage | AC380 V three-phase five-wire | ||
| Input Voltage Range | 380 VAC ±20% | ||
| Maximum Input Current | 640 A (320 A/every route) | 720 A (360 A/every route) | 800 A (400 A/every route) |
| Operating Frequency | 50/60 Hz | ||
| Output Voltage Range | 50–1000 V DC | ||
| Maximum Output Current per Gun/Connector | 250 A | 250 A | 250 A |
| Rated Output Power | 320 kW | 360 kW | 400 kW |
| Power Allocation/Switching | Equal power sharing | ||
| Total Harmonic Distortion of Input Current (THDI) | THDI ≤5% (input 380 V, output 1000 V, 50%–100% load) | ||
| Input Inrush Current | Inrush current ≤110% of rated input current | ||
| Power Factor (PF) | 0.99 (50%–100% output power); 0.95 (20%–50% output power), nominal input voltage & frequency | ||
| Voltage Regulation Accuracy | ±0.5% (-30°C to +55°C) | ||
| Current Regulation Accuracy | ±1% (-30°C to +55°C, 20%–100% load current) | ||
| Output Voltage Ripple | Peak coefficient ±1% (input voltage 85%, 100%, 115%) | ||
| Overall Efficiency | ≥96% (100% full-load output power) | ||
| Standby Power Consumption | ≤15 W | ||
| Cooling Method | Forced air cooling | ||
| Communication Protocol | OCPP 1.6J / 2.0.1 | ||
| Charging Gun | 5 m charging gun (customized length available) | ||
| Communication Interface | 4G / Ethernet / WIFI | ||
| IP Grade | IP54 | ||
| Working Temperature | -30°C to 70°C | ||
| Cable Specification Reference | Cu: 3×120mm²+2×70mm² Al: 3×185mm²+2×120mm² | Cu: 3×150mm²+2×95mm² Al: 3×240mm²+2×150mm² | Cu: 3×185mm²+2×120mm² Al: 3×300mm²+2×240mm² |
| Relevant Standards | GB/T 18487.1-2015; GB/T 27930-2015; GB/T 20234-2015 | ||
| Package Size | 1050×1200×2360 mm | ||
| Gross Weight | 486.5 kg (400 kW) | ||
