AC Series IV 7kW 11kW 22kW Home & Commercial AC EV Charger with Aluminum Alloy Housing

Experience the future of home energy. Industrial-grade performance housed in a masterpiece of minimalist design. Reliable, intelligent, and crafted for your lifestyle.

Discover More
KEVO Power Wallbox AC EV Charger Tethered Cable Version

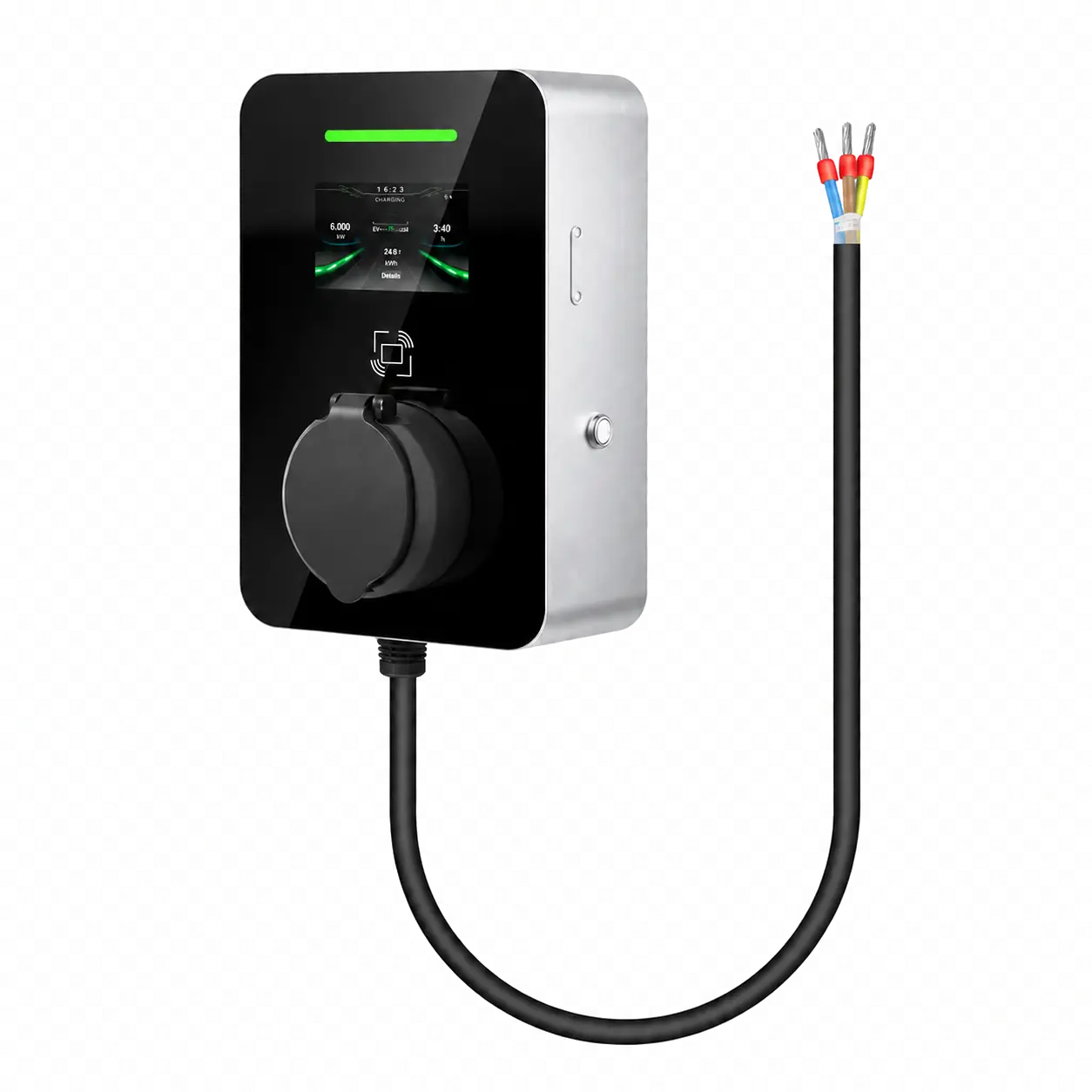

KEVO Power Wallbox AC EV Charger Socket Version
AC Charger
Wallbox AC EV Charger
7kW / 11kW / 22kW

Wall-Mounted Charging Solution for Home & Commercial Use

Model: AC Series IV
4.3" Display
OCPP 1.6J / 2.0.1
WiFi & Bluetooth
IP65 Protection
TUV Certified
Tethered Cable Version
Socket Version
Flexible Power Options
Available in 7kW, 11kW and 22kW for different installation needs.
Comprehensive Safety
Built-in leakage protection, relay sticking detection and multiple electrical safeguards.
Smart Connectivity
App control, Bluetooth / WiFi connection and OTA updates for easy management.
Built for Outdoor Use
IP65-rated design for reliable charging in demanding environments.
Get a Quote Download

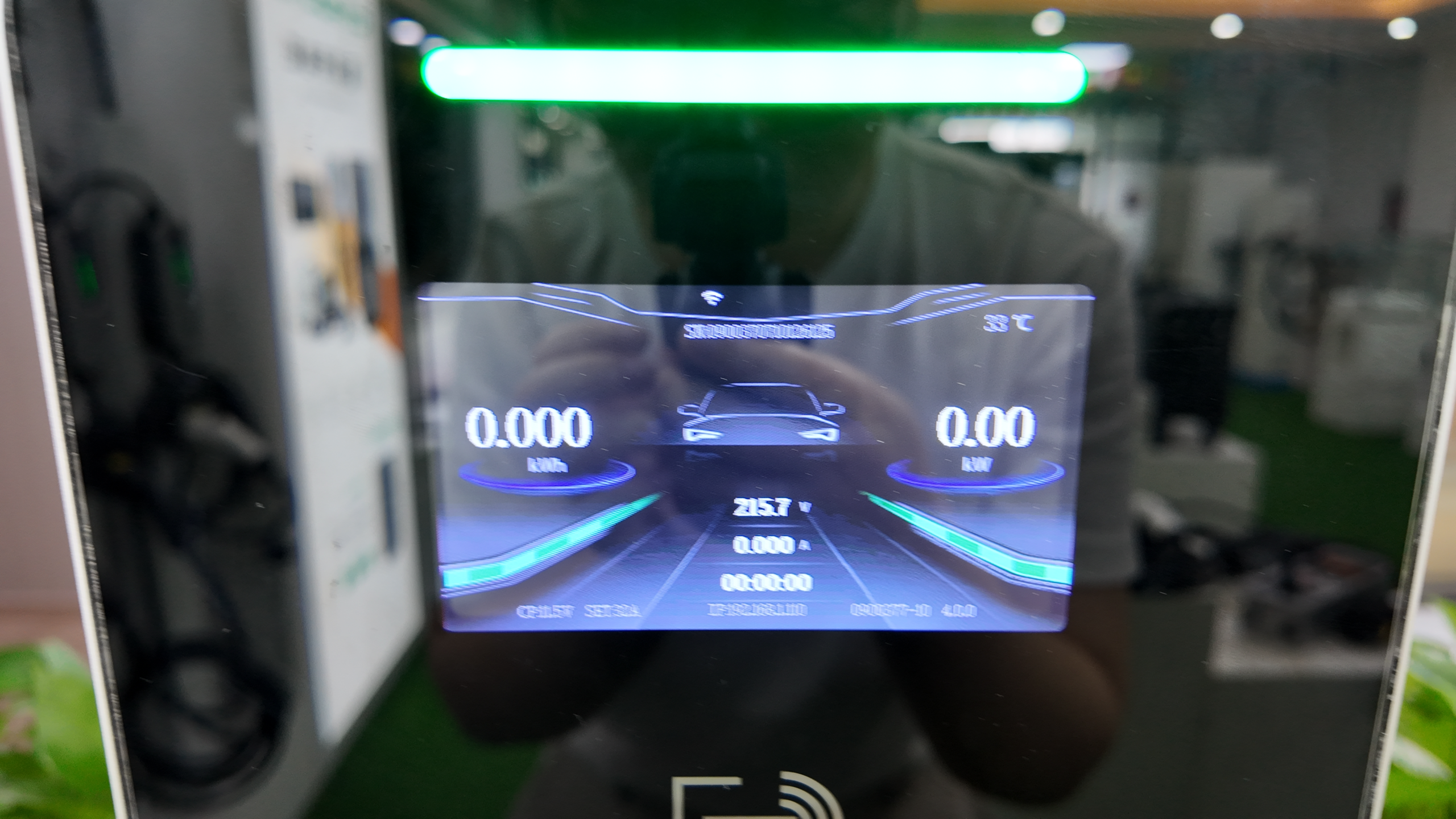

KEVO Power AC Series IV Photo A A

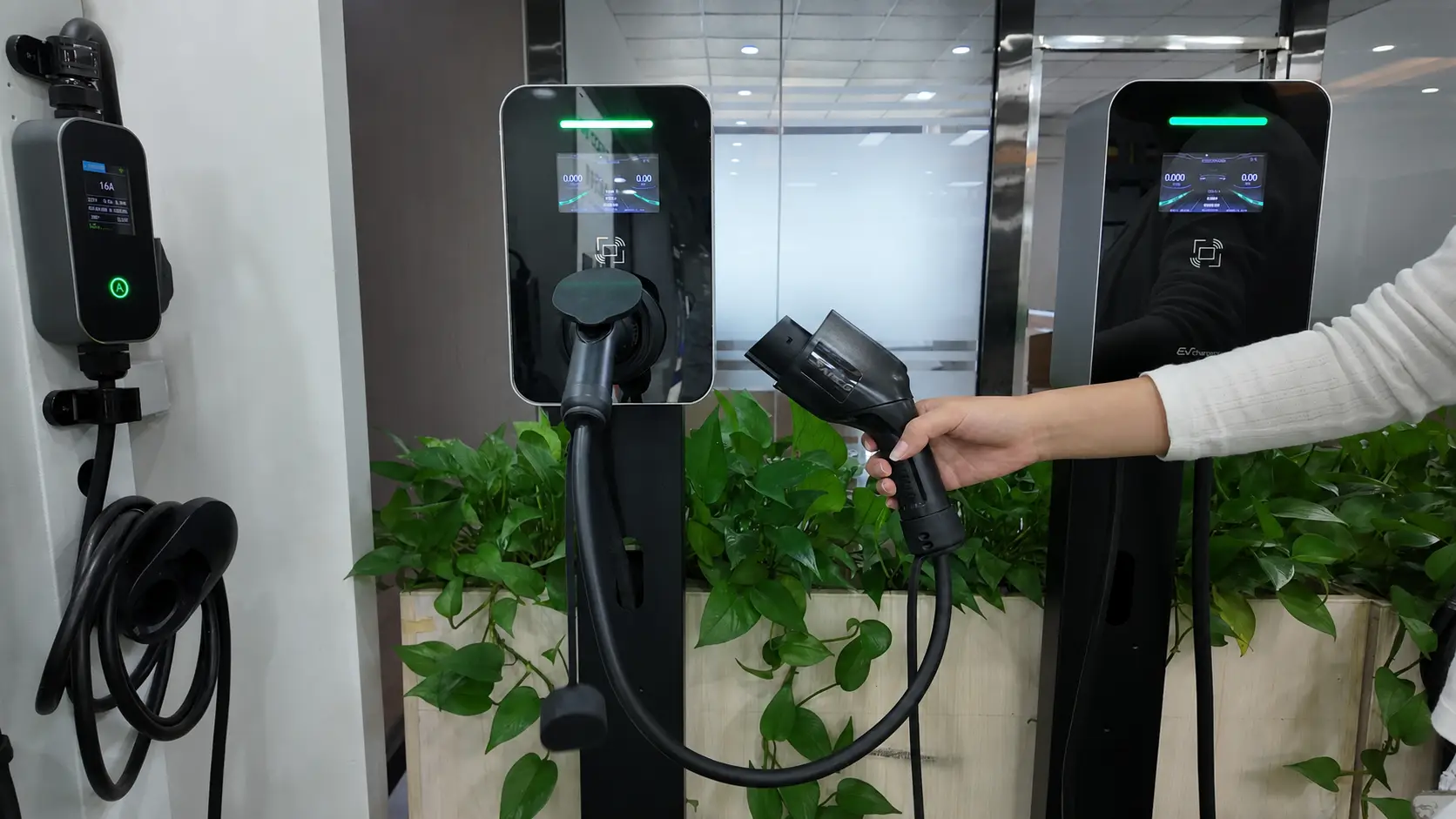

KEVO Power AC Series IV Photo B B

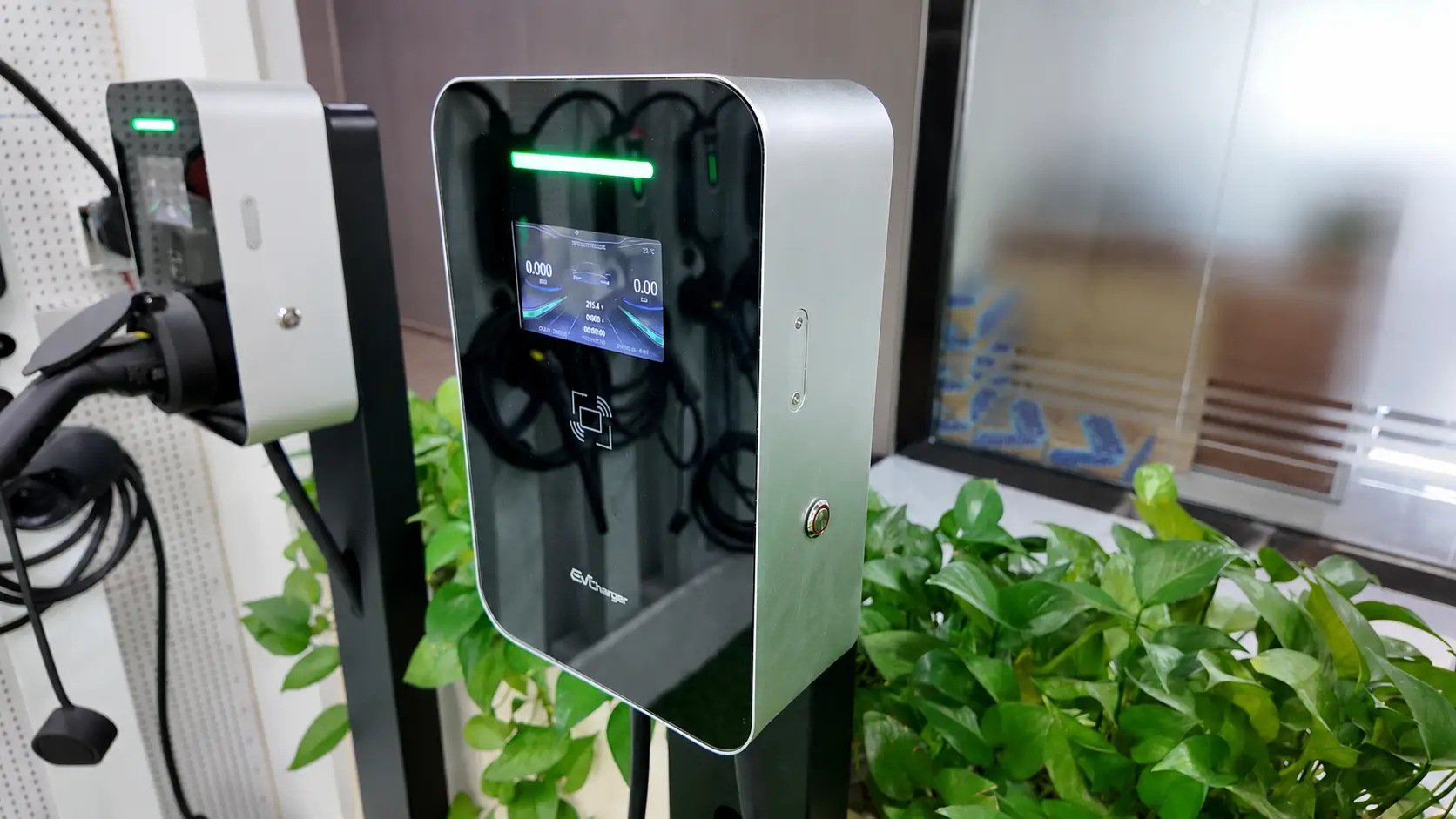

KEVO Power AC Series IV Photo C C

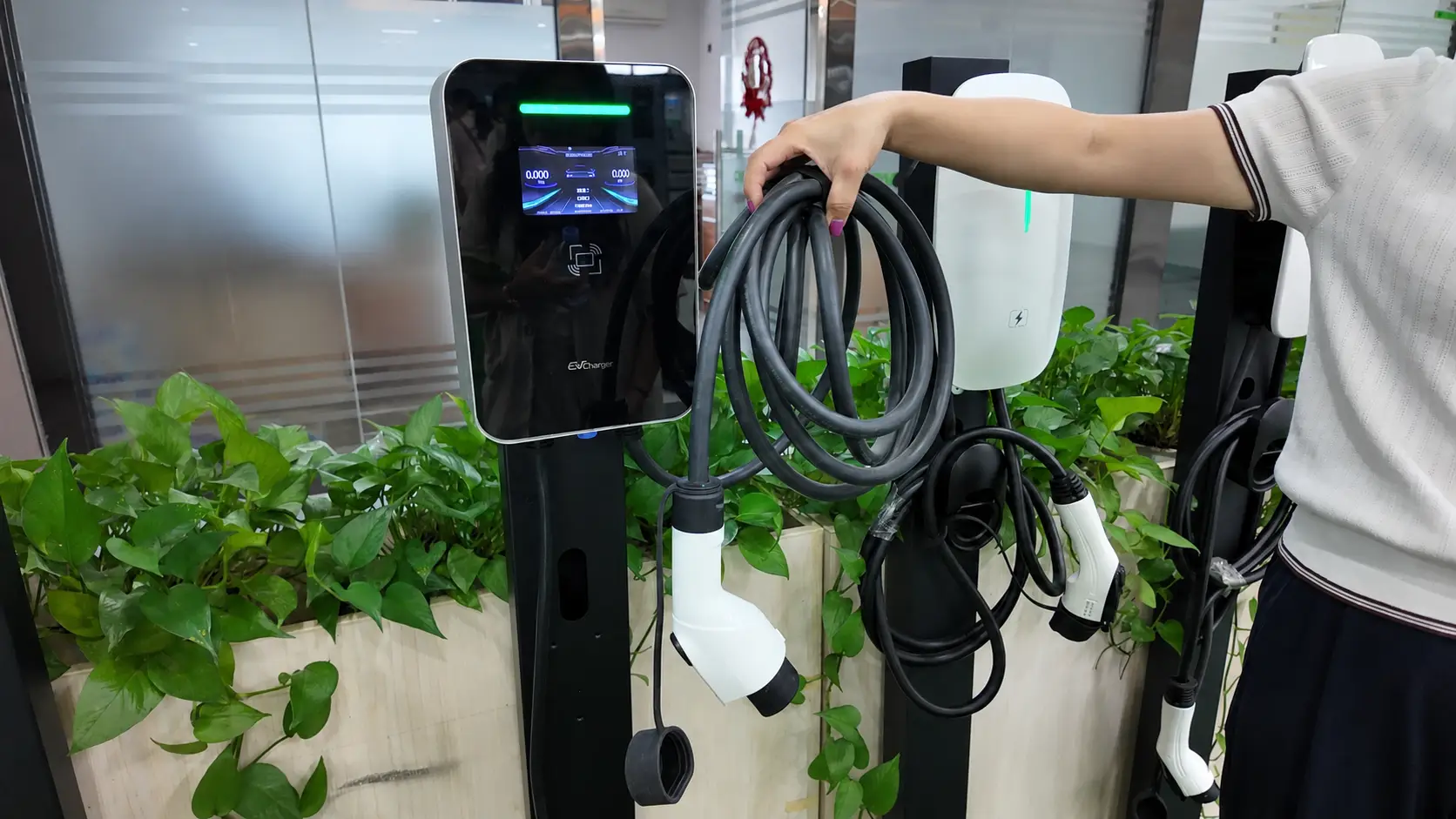

KEVO Power AC Series IV Photo D D

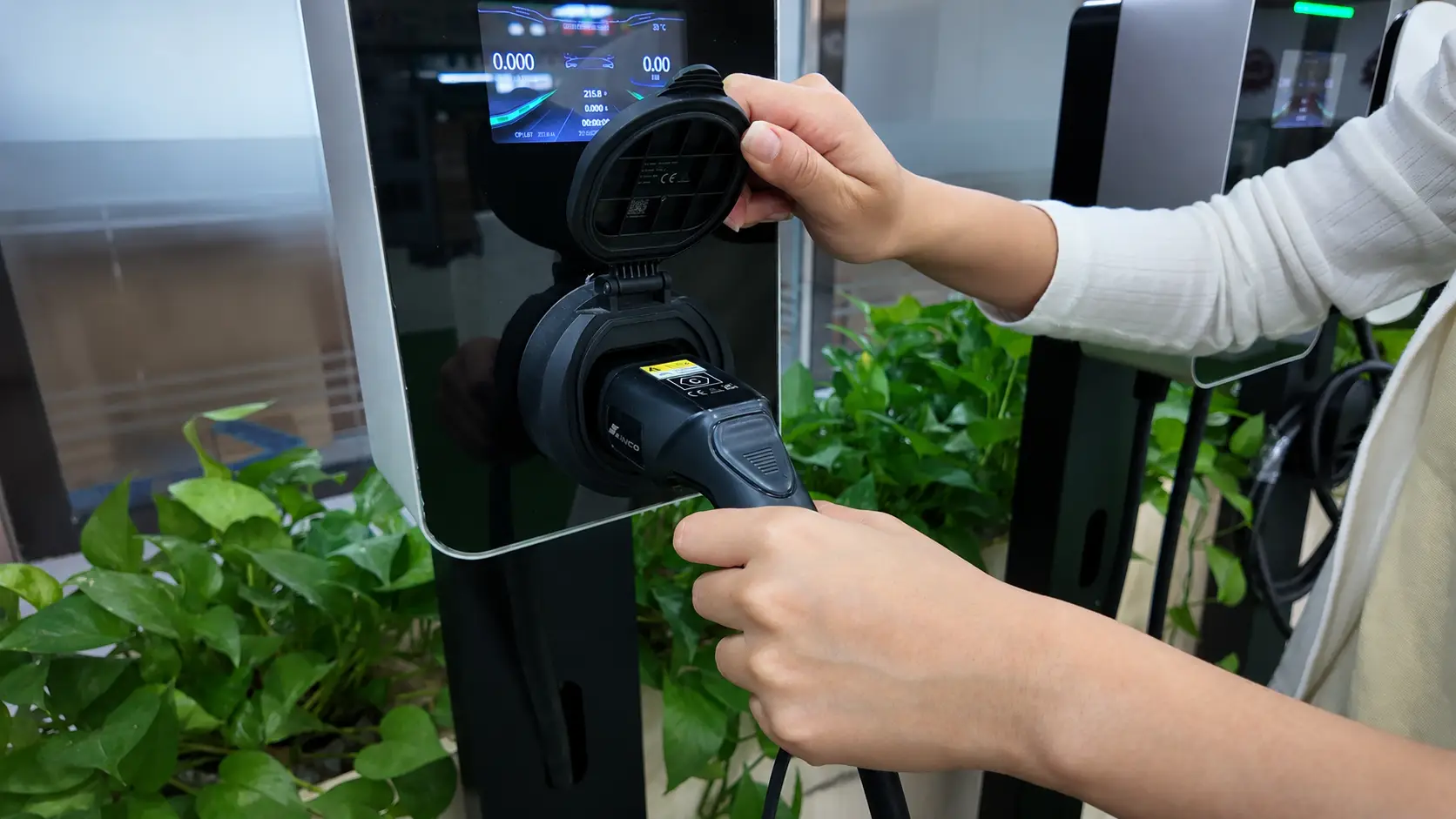

KEVO Power AC Series IV Photo E E

AC Charging Standards

Choose the right connector standard for your market

Type 1

SAE J1772

Single-phase AC standard with reliable performance and widespread adoption in legacy EV markets.

Common in North America & Japan

Type 2

IEC 62196-2

Versatile single- and three-phase connector with broad compatibility across European markets.

Widely used in Europe

GB/T AC

China AC Standard

AC charging standard tailored for the Chinese market with robust safety and operational reliability.

Standard for China

AC Charger Status Display

Operating Status Overview

1
Pragmatic Screen

Pragmatic

  • Road lights: green flow
  • Indicator light: green always on
2
Insert A Gun Screen

Insert A Gun

  • Road lights: green always on
  • Indicator light: green flashing
3
Charge Waiting Screen

Charge Waiting

  • Road lights: blue to yellow always on
  • Indicator light: blue always on
4
Charging Screen

Charging

  • Road lights: blue flow
  • Indicator light: blue flashing
5
Charging Complete Screen

Charging Complete

  • Road lights: blue always on
  • Indicator light: blue always on
6
Faults Screen

Faults

  • Road lights: red always on
  • Indicator light: red flashing

Product Parameters

GB/T

Input Voltage220Vac±20%/380Vac±20%
Product Size295*195*95.5 mm
Input Current16A/32A
Rating7kW/11kW/22kW
Leakage TypeA
Operating Humidity5%-95% condensationless
Operating Temperature-25 °C~+50 °C
Functional SupportDisplay, Indicator, Swipe Card, Bluetooth/WIFI(optional)
Protective FunctionOver-voltage protection, over-current protection, leakage protection, over-temperature protection, lightning protection, etc.

Type 2 (Socket Version)

Input Voltage220Vac±20%/380Vac±20%
Product Size295*195*95.5 mm
Input Current16A/32A
Rating7kW/11kW/22kW
Leakage TypeA
Operating Humidity5%-95% condensationless
Operating Temperature-25 °C~+50 °C
Functional SupportDisplay, Indicator, Swipe Card, Bluetooth/WIFI(optional)
Protective FunctionOver-voltage protection, over-current protection, leakage protection, over-temperature protection, lightning protection, etc.

Type 1 / NACS

Input Voltage240Vac±20%
Product Size295*195*95.5 mm
Input Current32A/48A
Rating7.6kW/11.5kW
Leakage TypeA or CCID20(optional)
Operating Humidity5%-95% condensationless
Operating Temperature-25 °C~+50 °C
Functional SupportDisplay, Indicator, Swipe Card, Bluetooth/WIFI(optional)
Protective FunctionOver-voltage protection, over-current protection, leakage protection, over-temperature protection, lightning protection, etc.
